HB Installation

HOLOGRAPHIC screens > HB rigid screens








Usually the screen CIMEX HB is installed in spaces specifically created by the customer or installer to create the best atmospher - GALLERY -



Alternatively we can offer some very simple fixing systems but with a very nice design. Here you can find some pictures and descriptions of these suspension systems. Contact us for any clarifications.

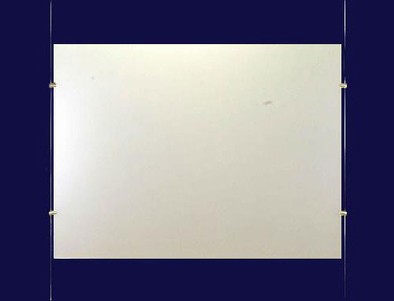

SUSPENSION SYSTEM suspension system with steel cables:
High quality installation system but easy to assemble. In the set you will
receive the necessary for assembling, including 4 clamps to fix the rigid screen
to the steel cables and the screws.

SUSPENSION SYSTEM with horizontal PLEXIGLAS bars:
System with steel cables for fixing ceiling/floor or simply ceiling/screen with
2 horizontal rods made of transparent PLEXIGLAS to fix above and below the
screen itself using special chrome plated brass clamps.

suspension system con barre in plexiglasparticular: fixing materials

SUSPENSION SYSTEM with horizontal ALUMINIUM bars:
System with steel cables for fixing ceiling/floor or simply ceiling/screen with
2 horizontal ALUMINIUM bars aluminium to be fixed above and below the screen
itself by special chrome plated brass clamps.

suspension system con barre in alluminioparticolare: barra in alluminioparticolare: barra in alluminio

SUSPENSION SYSTEM with horizontal STEEL bars:
System with steel cables for fixing ceiling/floor or simply ceiling/screen with
2 horizontal STEEL bars aluminium to be fixed above and below the screen
itself by special chrome plated brass clamps.

suspension system con barre in alluminioparticolare: barra in alluminioparticolare: barra in alluminio

BLACK or SILVER FRAME with steel cables:
System with BLACK or SILVER ALLUMINIUM FRAME (to be fit) attached to
the ceiling by steel cables.

cornice nera in alluminioparticolare cornice: morsetti e cavi

Ceiling STEEL BRACKETS:

System with steel rigid brackets to be fixed tothe ceiling.

staffe in acciaio da soffitto

ALUMINIUM EXHIBITOR:


The Aluminium display is a modular exhibitor to be assembled. It is extremely elegant, with an aluminum and polycarbonate details, fixed on adjustable supports or wheels.

espositore in alluminioespositore in alluminioespositore in alluminioespositore in alluminio c/o stand SONY Italia - fiera Expotrade

PACKAGING system:
The HB screens are transported individually by using a special wooden crate that guarantees their protection.

imballi

The SUSPENSION SYSTEM and the FRAME area available for HB screen with the following dimentions:

4:3
RATIO

Width [cm]

Height [cm]

16:9
RATIO

Width [cm]

Height [cm]

40"

80

60

40"

93

52

50"

100

75

50"

111

62

60"

120

90

60"

135

76

75"

152

114

75"

166

93

84"

168

126

84"

186

104

100"

200

150

100"

222

124

120"

240

180

120"

267

150

140"

300

200

140"

222

124

The STEEL BRACKETS are available HB screen with the following dimentions:

4:3 RATIO

Width [cm]

Height [cm]

16:9
RATIO

Width [cm]

Height [cm]

40"

80

60

40"

93

52

50"

100

75

50"

111

62

60"

120

90

60"

135

76

The ALUMINIUM EXHIBITOR is available for HB screen with the following dimentions:

4:3 RATIO

Width [cm]

Height [cm]

16:9 RATIO

Width [cm]

Height [cm]

50"

100

75

50"

111

62

60"

120

90

60"

135

76

75"

152

114

75"

166

93
