MONITOR SUPPORTS

SUPPORTS

______________________universal wall bracket TV-S05____________________________

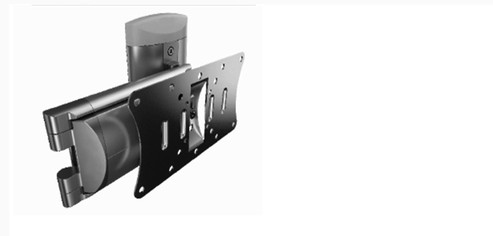

universal wall bracket TV-S05: very flexible, versatile, with 3 articolations, easily adjustable by the user on any turn and tilt possibilities
name	TV-S05
available for	- LCD - PLASMA
TV size (inch)	10-32"
max TV weight	20 Kg
turn	3 articolations: 180°+270°+320°
tilt	20°
VESA norms	50-75-100x200
distance wall/TV	100-600 mm
DOWNLOAD:	TECHNICAL DATA

______________________universal wall bracket TV-S04____________________________

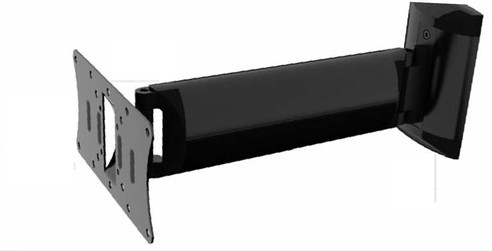

universal wall bracket TV-S04: very flexible, versatile, 2 articulations, easily adjustable by the user on any turn and tilt possibilities
name	TV-S04
available	- LCD - PLASMA
TV size (inch)	15-26"
TV max weight	20 Kg
turn	2 articulations: 180°+320°
tilt	20°
VESA norms	50-75-100x200
distance wall/TV	90-390 mm
DOWNLOAD:	TECHNICAL DATA

______________________universal wall support TV-S01____________________________

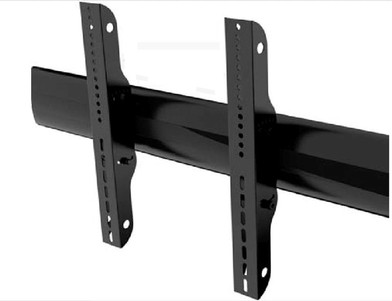

universal wall support TV-S01: flexible, versatile, easily adjustable by the user on any slide, turn and tilt possibilities
name	TV-S01
available for	- LCD - PLASMA
TV size (inch)	30-63"
max TV weight	75 Kg
slide	1000 mm
tilt	15°
VESA norms	no
distance wall/TV	80 mm
DOWNLOAD:	TECHNICAL DATA

______________________universal wall bracket TV-S03____________________________

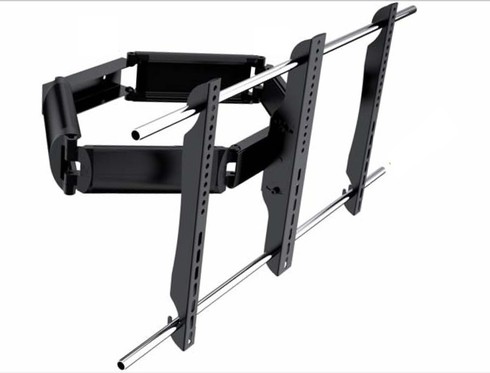

double arm wall bracket TV-S03: very flexible, with 3 articulations, easily adjustable by the user on any slide, turn and tilt possibilities
name	TV-S03
available for	- LCD - PLASMA
max TV weight	45 Kg
slide	500 mm
turn	3 articulations: 180°+270°+320°
tilt	15°
VESA norms	NO
distance wall/TV	150-600 mm
DOWNLOAD:	THECNICAL DATA

______________________universal support TV-S06 (TROLLEY)____________________________

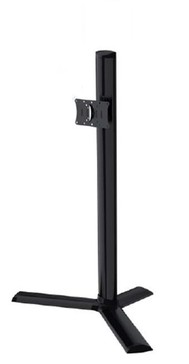

universal support TV-S06 (TROLLEY): very flexible, versatile, easily adjastable by user on any slide, turn and tilt possibilities
name	TV-S06
available for	- LCD - PLASMA
TV size (inch)	26-65"
max TV weight	50 Kg
slide	350 mm
turn	180° vertical
tilt	20°
VESA norms	400x200 200x200 200x100
distance floor/TV	1000 mm
DOWNLOAD:	TECHNICAL DATA

______________________vertical wall support TV-S02____________________________

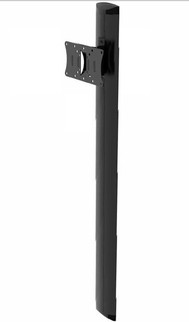

vertical wall support TV-S02: flexible, versatile, easily adjastable by user on any turn and tilt possibilities
name	TV-S02
available for	- LCD - PLASMA
TV size (inch)	23-42"
max weight TV	25 Kg
turn	120° horizontal
titl	20°
VESA norms	200x200
DOWNLOAD:	TECHNICAL DATA

______________________ceiling bracket TV-S07____________________________

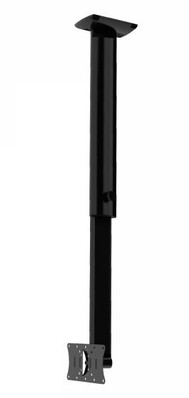

ceiling bracket TV-S07: flexible, versatile, easily adjastable by user on any turn and tilt possibilities
name	TV-S07
available for	- LCD - PLASMA
TV size (inch)	10-32"
max TV weight	25 Kg
slide	350 mm
tutn	180° vertical 360° horizontal
tilt	20°
VESA norms	50/75/100/200x 100/150/200
distanza ceiling/TV	500-850 mm
DOWNLOAD:	TECHNICAL DATA

______________________TROLLEY DOUBLE____________________________

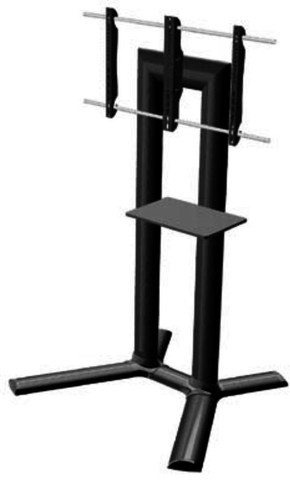

TROLLEY DOUBLE: floor trolley system
name	TROLLEY DOUBLE
available for	- LCD - PLASMA
TV size (inch)	32-60"
max TV weight	75 Kg
max size BASE	110x800 mm
heigth	c.a. 150 cm
material thickness	solid steel 1.8 mm
VESA norms	770x480
bracket size	800x420x40 mm
equipped with	4 swivel castorsi, 2 with brakes
DOWNLOAD:	TECHNICAL DATA
